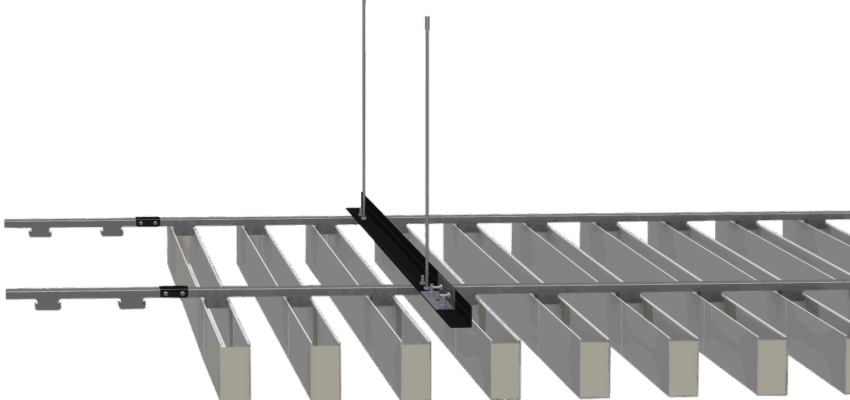

• Baffle Metal Asma Tavan Sistemi Teknik Detay
    Baffe Sistem Detayı

Metal Ceiling Products

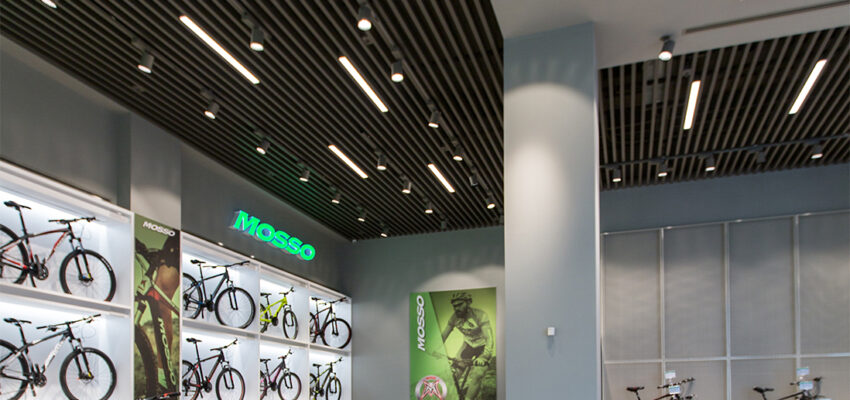

Baffle Ceiling System

-Baffle suspended ceiling systems provide modern and aesthetic solutions for linear ceiling designs.These baffle systems
are preferred to give spaces a stylish and innovative appearance.
-Thanks to the special locking mechanism on the carrier profile, baffle ceiling applications can be installed easily, safely, and quickly.
-According to architectural requirements, baffle suspended ceiling panels can be produced in different widths (W) and heights (H); panel spacing can also be customized for each project.
-With perforation and infill materials applied to the panels, the acoustic performance of baffle ceiling and baffle systems is enhanced, improving sound comfort within the space.
Baffle Suspended Ceiling Systems offer a wide range of colors and surface finishes, including RAL painted, wood-look, and other coating alternatives.


Measurement

En 20/30/40/50 mm
Yükseklik 100-300 mm
It can be prepared in special dimensions as desired.

Raw materials

Aluminum / Galvanized

Acoustic

Acoustic fabric with up to αw: 1,00 Sound absorption value

Colors

RAL 9003

RAL 9005

RAL 9010

RAL 9016

RAL 7016

It is prepared in the desired RAL color and wood appearance.

Moisture

Galvanized panel: 90% RH
Aluminum panel: 100 % RH

Perforation

⌀1,5 MM ⌀2,5 MM AND Perforation options suitable for the mold
