Clip-In Bean Pattern System

  • Clip-in-Bakla-Desen - Bütem Metal Teknik Çizim
    Clip-In Bean Pattern System

Metal Ceiling Products

Clip-In Bean Pattern System

Modern Metal Ceiling Solutions with Clip-in Bakla Pattern System

Bütem Metal’s clip-in ceiling solutions, using perforated bakla patterns, provide both an aesthetic and functional alternative to traditional suspended ceiling solutions. The system allows for easy-to-clean, smooth surfaces while adding depth to spaces with the effect of expanded metal. Expanded metal provides a modern and stylish metal suspended ceiling experience.

What Are the Advantages of Clip-in Suspended Ceilings?

Clip-in suspended ceiling systems can be applied in compatibility with different ceiling systems.
Easy to install and allows for quick assembly.
Perforated bakla patterns provide both aesthetic and functional benefits on metal ceiling surfaces.
The use of expanded metal adds volume and depth to spaces.

As a result, clip-in ceiling and clip-in suspended ceiling systems, using expanded metal, stand out as an ideal metal suspended ceiling solution for modern offices, shopping malls, and commercial spaces.


Measurement

600 mm x 600 mm
600 mm x 1200 mm
It can be prepared in special dimensions as desired.

Raw materials

Aluminum / Galvanized

Acoustic

Acoustic fabric with up to αw: 1,00 Sound absorption value

Colors

RAL 9003

RAL 9005

RAL 9010

RAL 9016

RAL 7016

It is prepared in the desired RAL color and wood appearance.

Moisture

Galvanized panel: 90% RH
Aluminum panel: 100 % RH

Perforation

Perforated Bean Pattern

Documents About Clip-in Bean Pattern System

CERTIFICATES


Projects Used

Curvilinear Hook-On System

  • Eğrisel Hook-On Sistem - Teknik Çizim
    Curvilinear Hook-On System

Metal Ceiling Products

Curvilinear Hook-On System

 – Hook-on Sistem, özel boyutlu panellerle özgün tasarımlar oluşturmayı çok daha kolay ve güvenli hâle getiren gelişmiş bir metal asma tavan çözümüdür.• Mimari beklentiler doğrultusunda, farklı eğrisellikte ve farklı boyutlarda  hook-on panel alternatifleri sunulabilir.
- Depending on architectural requirements, the Hook-on System offers various panel alternatives in different curvatures and dimensions, providing maximum design flexibility within modern suspended ceiling systems
– Gizli taşıyıcı yapısı sayesinde Hook-on Sistem, monolitik ve kesintisiz bir tavan görünümü yaratır. Bu özellik, modern projelerde tercih edilen metal suspended ceiling one of the preferred options among contemporary
– Montajı son derece kolaydır. Tek bir taşıyıcı sistem üzerinde farklı boyutlarda Hook-on paneller kullanmak mümkündür; bu da hem uygulama sürecini hızlandırır hem de asma tavan sistemleri içinde modülerliği artırır.


Measurement

600 * 600 mm
600 * 1200 mm
ve İstenilen özel ölçülerde hazırlanabilir.

Raw materials

Alüminyum – Galvaniz

Acoustic

Colors

RAL 9003

RAL 9005

RAL 9010

RAL 9016

RAL 7016

İstenilen RAL Rengi hazırlanır.

Moisture

Aluminum panel: 100 % RH

Perforation

Documents on Metal Suspended Ceiling

CERTIFICATES


Demontable Opencell Ceiling System

  • Demonte Petek (Opencell) Metal Asma Tavan Sistemi - Teknik Çizim
    Demonte Petek Asma Tavan

Metal Ceiling Products

Demontable Opencell Ceiling System

-Petek asma tavan uygulamalarında taşıyıcı izi görünmez, kesintisiz devam eder ve mekanda tavan boyunca bütünlük hissi oluşturur.
-Petek tavan modelleri için hücre boyut seçenekleri: 100 mm – 75 mm – 50 mm olarak sunulmaktadır.
-Profilin standart yüksekliği 40 mm olup, petek tavan ve metal asma tavan uygulamaları için 50 mm yükseklikte imalat imkanı da mevcuttur.
-Estetik ve fonksiyonel tasarımı sayesinde petek tavan modelleri, hem modern ofislerde hem de ticari mekanlarda şık bir görünüm sunar.
Metal suspended ceiling ve petek asma tavan sistemleri, havalandırma entegrasyonu gibi fonksiyonel avantajlar sağlayarak mekanın konforunu artırır.


Measurement

Cell Size Alternatives:
50 mm-75 mm-100 mm

Raw materials

Aluminum

Acoustic

Colors

RAL 9003

RAL 9005

RAL 9010

RAL 9016

RAL 7016

İstenilen RAL Rengi hazırlanır.

Moisture

Aluminum panel: 100 % RH

Demonte Petek Asma Tavan Hakkında Dökümanlar

CERTIFICATES


Projects Used

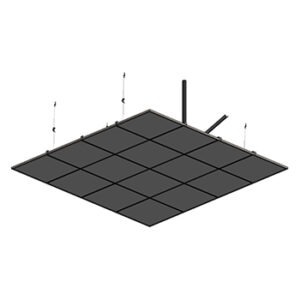

T-24 Seismic System

Metal Ceiling Products

T-24 Seismic System

T-24 Sismik Asma Tavan Özellikleri


– Deprem ve hareket koşullarındaki performansı için Deprem Araştırma Enstitüsü tarafından onaylanan T-24 Sismik Sistem, tüm koşullarda güvenilir bir emniyet sağlar. Bu gelişmiş sismik asma tavan çözümü, sarsıntı anında yapısal bütünlüğünü koruyacak şekilde tasarlanmıştır.
– Sağlam yapısı sayesinde bu metal asma tavan sistemi, dayanıklılık ve stabilite sunarak özellikle ticari ve kamusal alanlar için ideal bir çözüm oluşturur. Yüksek güvenlik standartlarına sahip olan bu sismik asma tavan, yoğun yaya trafiğinin olduğu alanlarda riskleri minimize eder.
– T-24 Sismik Sistem için özel olarak gerçekleştirilen laboratuvar testleri, sistemin sismik yüklere maruz kaldığında hiçbir hasar almadığını doğrulamış ve bu metal suspended ceiling sisteminin sağlamlığını gözler önüne sermiştir.
Testlerle kanıtlanmış bu dayanıklılık, her türlü sismik asma tavan uygulamasında güvenle tercih edilmesini sağlar.
Modüler panel tasarımı, montaj ve bakım işlemlerinin kolaylıkla yapılmasına olanak tanırken, metal asma tavanın yapısal bütünlüğünü ve estetik görünümünü korur.
– T-24 Sismik Sistem, modern mimari projeler için hem güvenli hem de çok yönlü bir seçenek sunar. Estetikle güvenliği birleştiren bu sismik asma tavan teknolojisi, projelerinizde uzun ömürlü bir performans vadeder.

Measurement

600 mm x 600 mm

Raw materials

Aluminum / Galvanized

Acoustic

Acoustic fabric with up to αw: 1,00 Sound absorption value

Colors

RAL 9003

RAL 9005

RAL 9010

RAL 9016

RAL 7016

It is prepared in the desired RAL color and wood appearance.

Moisture

Galvanized panel: 90% RH
Aluminum panel: 100 % RH

Perforation

⌀1,5 MM ⌀2,5 MM AND Perforation options suitable for the mold

CERTIFICATES


T-24 Sismik Asma Tavan Kullanılan Projelerimiz

Curvilinear Baffle System

  • Eğrisel Baffle Sistem Metal Asma Tavan - Teknik Çizim
    Curvilinear Baffle System

Metal Ceiling Products

Curvilinear Baffle Ceiling System

-Baffle systems are modern baffle suspended ceiling solutions that provide stylish and innovative options for linear ceiling designs, enhancing both aesthetics and functionality.
-The special locking mechanism in the support profile allows for easy, safe, and fast installation, making baffle ceiling applications a practical and efficient solution for baffle metal suspended ceiling projects.
-According to architectural requirements, baffle metal panels can be produced in different curves and sizes, offering design flexibility and ensuring aesthetic continuity in baffle suspended ceiling systems.
RAL-painted and wood-look panels create a modern appearance that is fully compatible with baffle ceiling a wide range of color and finish options is available and other metal suspended ceiling solutions.


Measurement

En 20/30/40/50 mm
Yükseklik 100-300 mm ve
It can be prepared in special dimensions as desired.

Raw materials

Aluminum

Acoustic

Colors

RAL 9003

RAL 9005

RAL 9010

RAL 9016

RAL 7016

It is prepared in the desired RAL color and wood appearance.

Moisture

Aluminum panel: 100 % RH

Perforation

CERTIFICATES


Straight Edge Island Panel System

  • Duz-Kenarli-Ada-Panel Sistemi - Teknik Çizim
    Straight-Edged Island Panel System

Metal Ceiling Products

Straight-Edged Island Panel System

– Özel kilit sistemi sayesinde Slimline sistemi; saçak altı alanlarda, koridorlarda ve geniş açıklıklarda dinamik bir görüntü sunan en dayanıklı metal suspended ceiling çözümlerinden biridir. Tasarımda bölgesel vurgu yapmak isteyen mimarlar için bu sistem, şık bir ada panel uygulaması olarak da kurgulanabilir.
– Slimline paneller alan boyunca yatay olarak kesintisiz devam eder; bu tasarım özelliği sayesinde tavan görünümünde görsel bir süreklilik sağlar. Özellikle geniş mekanlarda bağımsız bir ada panel yerleşimi yapıldığında, modern bir metal tavan estetiği ön plana çıkar.
– Sistem, projeler için farklı tasarım alternatifleri sağlayan çeşitli ışık fikstür uygulamalarına tam uyum sağlar. Bu esneklik, hem standart tavanlarda hem de dekoratif ada panel tasarımlarında fonksiyonel bir metal asma tavan deneyimi sunar.
– Slimline panel boyutları standart olarak 100-200 mm yüksekliğinde ve 3000 mm uzunluğunda üretilmekte olup, endüstriyel ve modern metal tavan projelerinde güvenle tercih edilmektedir.


Measurement

Standard 600x600mm – 600x1200mm and can be prepared with the desired specifications

Raw materials

Aluminum / Galvanized

Acoustic

Acoustic fabric with up to αw: 1.00 Sound Absorption Coefficient

Colors

RAL 9003

RAL 9005

RAL 9010

RAL 9016

RAL 7016

It is prepared in the desired RAL color and wood appearance.

Moisture

Galvanized panel: 90% RH
Aluminum panel: 100 % RH

Perforation

⌀1.5 mm, ⌀2.5 mm, and mold-compatible perforation options.

CERTIFICATES


Bafflecell Suspended Ceiling System

  • Bafflecell - Opencell - Metal Asma Tavan Sistemi Teknik Çizim
    Bafflecell Asma Tavan Sistemi

Metal Ceiling Products

Bafflecell Suspended Ceiling System

•Petek tavan görünümünü baffle sistem derinliği ile birleştiren sistemdir.
•Taşıyıcı profildeki özel kilit sistemi kolay, güvenli ve montajı kolaydır.
•Mimari beklentiler doğrultusunda, farklı baffle panel boyutları (W-H) ve boşluk alternatifleri sunmak mümkündür.
•Panellere uygulanacak perforasyon ve dolgu malzemeleri sayesinde, akustik ihtiyaçlara çözüm sağlanmaktadır.
•Farklı renk ve kaplamalar uygulanmaktadır. Ral boyalı, ahşap görünümlü.


Measurement

En: 20/30/40/50mm
Yükseklik :100-300 mm
It can be prepared in special dimensions as desired.

Raw materials

Alüminyum – Galvaniz

Acoustic

Acoustic fabric with up to αw: 1,00 Sound absorption value

Colors

RAL 9003

RAL 9005

RAL 9010

RAL 9016

RAL 7016

It is prepared in the desired RAL color and wood appearance.

Moisture

Galvanized panel: 90% RH
Aluminum panel: 100 % RH

Perforation

⌀1.5 MM ⌀2.5 MM AND MOLD SUITABLE PERFORATED OPTIONS

Documents on Metal Suspended Ceiling

CERTIFICATES


Projects Used

Unigrid Opencell Ceiling System

Metal Ceiling Products

Unigrid Petek Tavan Sistemi

– Unigrid Petek Tavan Sistemi, T-24 kesitli taşıyıcılarla uygulanan ve modern mimarinin vazgeçilmezi olan metal asma tavan çözümlerinden biridir. Özel panel yapısı sayesinde, mekânlarda estetik ve son derece şık bir petek asma tavan görünümü elde edilir.
– Taşıyıcı profiller tavan yüzeyinde tamamen gizlenir; bu sayede kesintisiz ve temiz bir petek tavan tasarımı oluşturulur. Bu özellik, projelerinizde pürüzsüz bir metal tavan estetiği yakalamanıza olanak tanır.
– Paneller, herhangi bir özel sökme aparatı gerektirmeden kolayca çıkarılabilir. Bu fonksiyonellik, petek tavan modelleri arasında bakım ve müdahale kolaylığı sağlayan en pratik metal asma tavan seçeneklerinden biri olmasını sağlar.
– Hücresel yapısı sayesinde bu metal tavan sistemleri, tavan arkası hacminde son derece etkili bir hava sirkülasyonu sunar. Böylece Its panels create an aesthetic and uygulamaları, ferah bir iç mekân iklimlendirmesine doğrudan katkıda bulunur.
– Hem petek asma tavan hem de diğer gelişmiş petek tavan modelleri, farklı tip aydınlatma armatürleriyle mükemmel bir uyum sergiler. Esnek tasarım seçenekleri sunan bu sistemler, projelere modern, fonksiyonel ve dayanıklı metal tavan çözümleri kazandırır.

Measurement

40 mm

Raw materials

Galvaniz

Acoustic

Colors

RAL 9003

RAL 9005

RAL 9010

RAL 9016

RAL 7016

It is prepared in the desired RAL color and wood appearance.

Moisture

Galvanized panel: 90% RH

Documents on Metal Suspended Ceiling

CERTIFICATES


Projects Used

Slimline Suspended Ceiling System

  • Slimline lineer metal asma tavan teknik detay
    Slimline Metal Asma Tavan Sistemi

Metal Ceiling Products

Slimline Suspended Ceiling System

- The Straight-Edged Island Panel system utilizes a special locking mechanism, similar to the Slimline system, to provide a dynamic appearance in large open areas, corridors, and beneath eaves. This makes it a versatile Island panel metal suspended ceiling solution.
- These Island panel units, which are a key part of our metal suspended ceiling systems, ensure a continuous look across the ceiling due to their consistent horizontal alignment.
- This specific Island panel metal ceiling allows for various lighting fixture applications, providing diverse design alternatives for architectural projects. The system’s ease of installation is partly due to the effective Island hook on system.
- Standard panel dimensions are typically 600x600mm to 600x1200mm, with custom sizing available upon request, offering flexibility for any metal suspended ceiling project.


Measurement


Yükseklik 100-150-200 mm

Raw materials

Aluminum / Galvanized

Acoustic

Colors

RAL 9003

RAL 9005

RAL 9010

RAL 9016

RAL 7016

It is prepared in the desired RAL color and wood appearance.

Moisture

Galvanized panel: 90% RH
Aluminum panel: 100 % RH

Perforation

Documents on Metal Suspended Ceiling

CERTIFICATES


Lego Suspended Ceiling System

  • Lego - Loop Metal Asma Tavan Sistemi Uygulaması
    Lego - Loop Metal Asma Tavan Sistemi

Metal Ceiling Products

Lego Suspended Ceiling System

•Lego tasarımlı tavanlar son derece şık yuvarlak açıklıkla uyumlu bir şekilde harmanlanmıştır. Bu açıklık üç boyutlu estetik bir tavan deseni oluşturur.
•Gizli taşıyıcı sistemi olmasından dolayı, panellerin monolitik görünümü vardır.

Measurement

600 mm x 1200 mm

Raw materials

Galvaniz

Acoustic

Acoustic fabric with up to αw: 1,00 Sound absorption value

Colors

RAL 9003

RAL 9005

RAL 9010

RAL 9016

RAL 7016

It is prepared in the desired RAL color and wood appearance.

Moisture

Galvanized panel: 90% RH

Perforation

⌀64 mm

Documents on Metal Suspended Ceiling

CERTIFICATES
